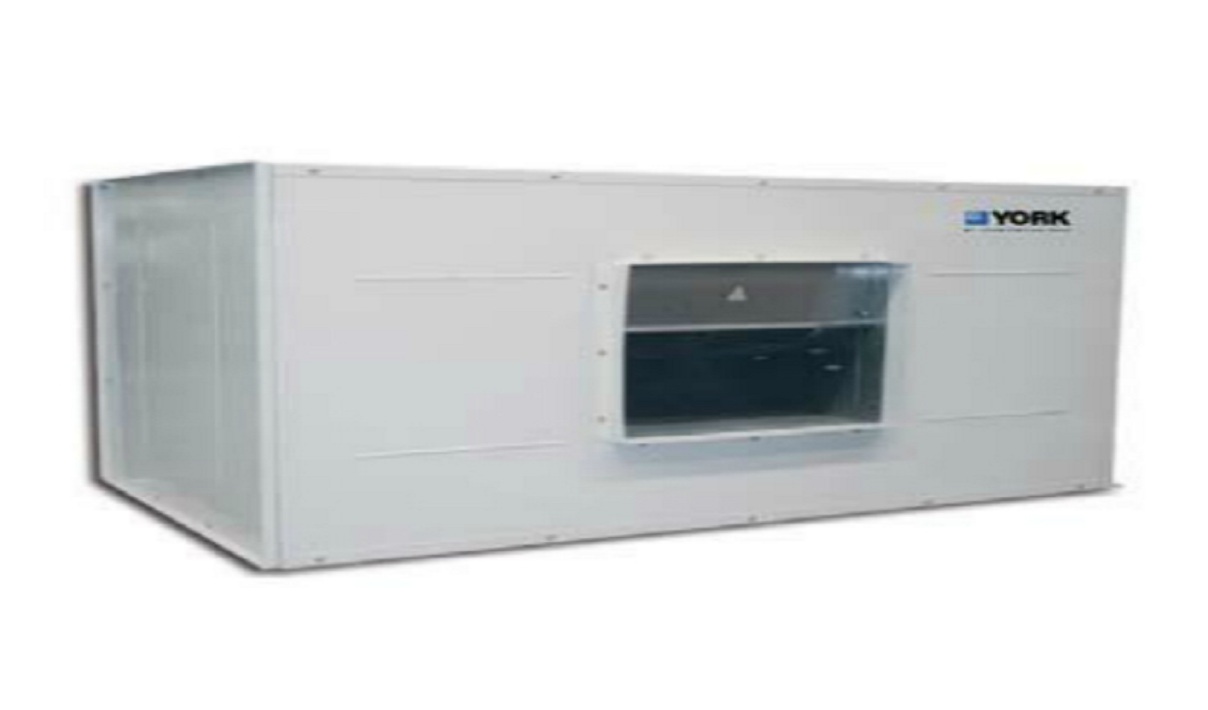

Máy Duct type đặt sàn/ âm trần nối ống gió MAL Gas 407C

  • Model:MAL/YVL
  • Loại 1 chiều
  • Công suất: 75,000 - 600,000 Btu/h
  • Xuất xứ: Thái Lan
  • Bảo hành:24 tháng

Sản phẩm phân phối chính hãng

Giá: Liên hệ

Product features

Wide Range

YORK MAL series  offer a complete  range of equipment (from 7.5 – 600 hp) to suit your needs

Flexibility

YORK MAL series  provides flexibility at 3 levels

 Fan Static Selection

With YORK MAL models,  you are allowed the flexibility of changing the standard external static pressure to suit your design requirements (i.e. by adjusting the 3 fan speed  of the MAL 75 - 100 and changing the pulley of MAL 125 -

600.)

 Air Discharge

YORK MAL series also allows you to choose  the direction of air discharge.

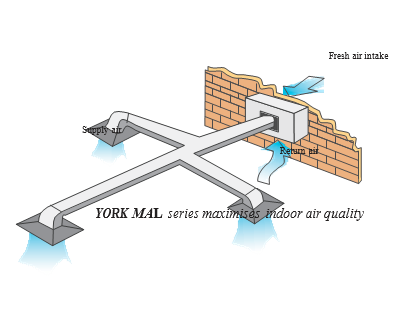

Air Distribuion

YORK MAL series  allows for long ducting to provide greater flexibility in installation and optimum comfort to the occupants.

High external  static pressure allows air to be distributed evenly to every corner  of the building without any loss of power to the airflow.

Modular System

The modular design of YORK MAL units provide you the flexibility of step-down unloading.

The step-down unloading feature  enables  the particular individual compressor to cut off when there  is a reduction of loading, thus saving you the unnecessary equipment running cost.


Energy Savings

YORK MAL series  provide you greater energy savings with

the application of scroll compressor.







 Easy Maintenance

The unit’s internal components are easily accessible  from either side just by loosening a few screws.

YORK series has been designed  for quick and easy maintenance.

High Efficiency Scroll Compressor

 Quiet  Operation

YORK MAL series  scroll compressor is significantly more silent than other  compressors and provides consumers with whisper quiet comfort.

 High Durability

YORK MAL series  scroll compressor uses 70% fewer moving parts than other  comparably sized reciprocating compressors that means  higher reliability and lower maintenance costs  for the scroll compressor.

 Greater Capability

The radial compliance  of the scroll compressor allows the scroll members to separate in the presence of liquid refrigerants or debris thus eliminates high stress  in members and substantially improves the durability of the compressor.

 Higher Efficiency

YORK MAL series  scroll compressor has a high Energy Efficiency Ratio, ensuring superior performance and greater energy savings for consumers.

 Perfect Balance

The low pulse discharge and without-valve design of the scroll compressor ensures that vibration of the unit while in operation  is minimized.





Indoor Unit



MAL 75 – 100

Standard  horizontal air discharge

Adjustable 3 fan speed  (direct drive)

Designed ESP 100 Pa

Build in filter rack

LMAL 125 – 150

Standard  horizontal air discharge

Belt driven

Designed ESP 150 Pa

Build in filter rack

Low ceiling height

MAL 200 - 600

Standard  vertical air discharge  at site for MAL 200 - 600

Vertical air discharge  for MAL 600 (non-convertible)

Single speed  motor and belt drive blower

Designed ESP

- MAL 200 = 150 Pa

- MAL 250 – 450 = 200 Pa

- MAL 500 = 250 Pa

- MAL 600 = 300 Pa

Build in filter rack










MAL 125 – 150

Standard  horizontal air discharge

Belt driven

Designed ESP 150 Pa

Build in filter rack

Convertible to vertical discharge  at site

SML Controller

(For MAL 75 to MAL 150 & LMAL 125-150)

Mode: Cool, Dry, Fan

Set temperature range 16oC~30oC

Room temperature display


Indoor fan speed:  Auto, High, Medium, Low

Sleep mode

Delay on/off timer, 1~24 hours

Key lock

System error code read out

Indoor coil temperature read out

Compressor  protections:-

-Comp 3 minutes  restart  protection

-Comp minimum runtime

-Insufficient of refrigerant

-Indoor  coil anti freeze

-Room  sensor,  indoor coil sensor  fault monitoring

Non volatile memory

keep system  settings

Sequential  Remote  Controller

(For MAL 200 - MAL 600)

Mode: Cool, Fan

Set temperature range 16oC~30oC

Room temperature display

7 days on/off timer

Key lock

Indoor coil temperature read out.

System error code read out.

Programmable system  control parameters

Remote  on/off

Compressor  auto sequencing

Compressor  protections:-

- Comp 3 minutes  restart  protection

- Comp frequent  cut in prevention





Outdoor Unit

YVL 75 – 150

Direct Drive Outdoor Fan

High efficiency scroll compressor

High and low pressure protection

Phase reversal  protection

Vertical air discharge

YHL 75 – 150

Direct Drive Outdoor Fan

High efficiency scroll compressor

High and low pressure protection

Phase reversal  protection

Horizontal air discharge

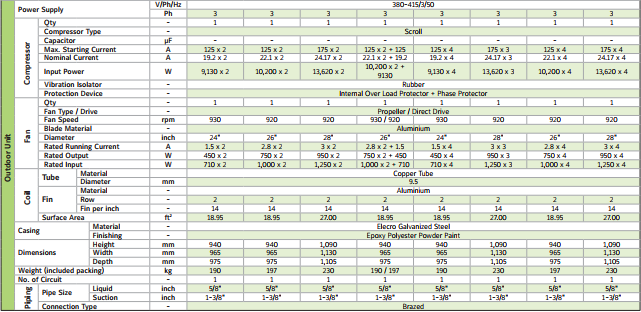

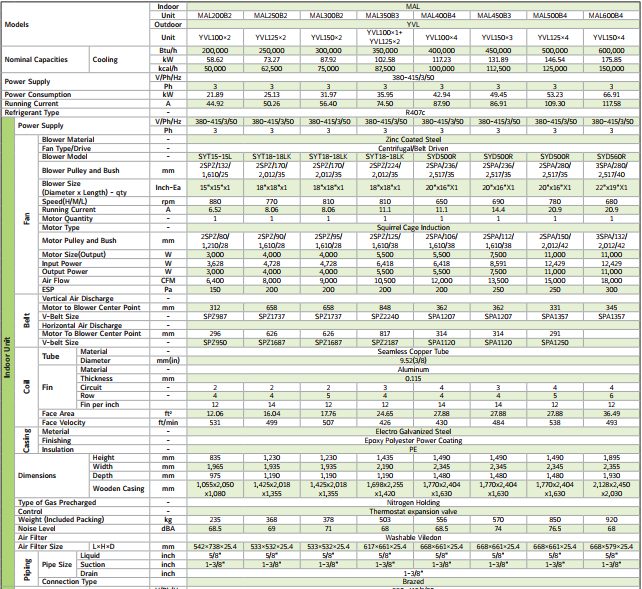

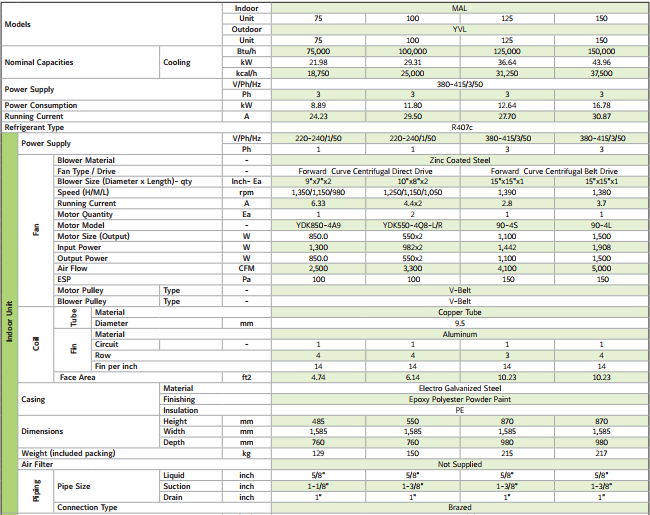

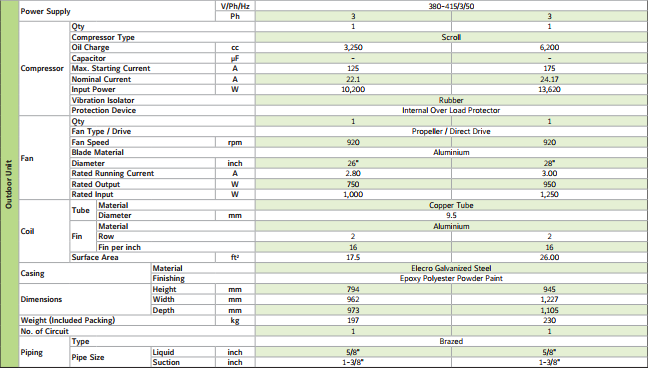

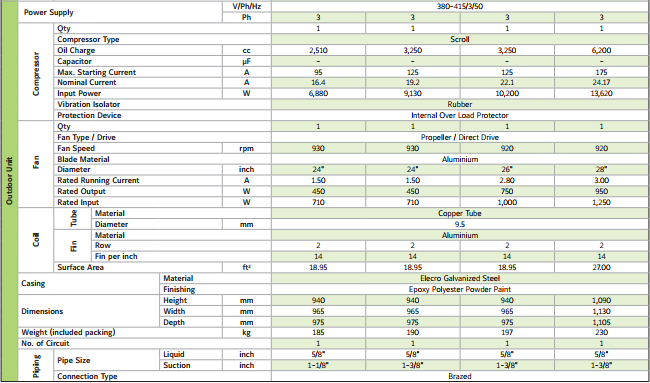

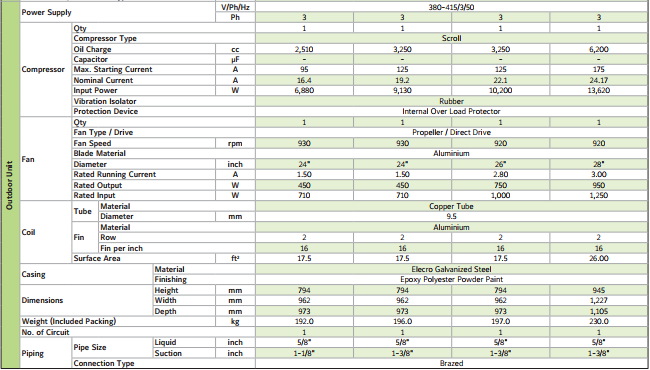

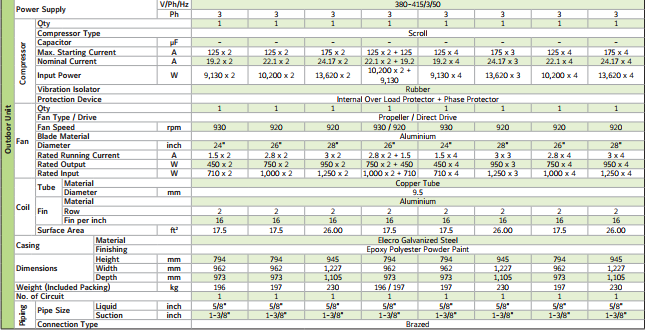

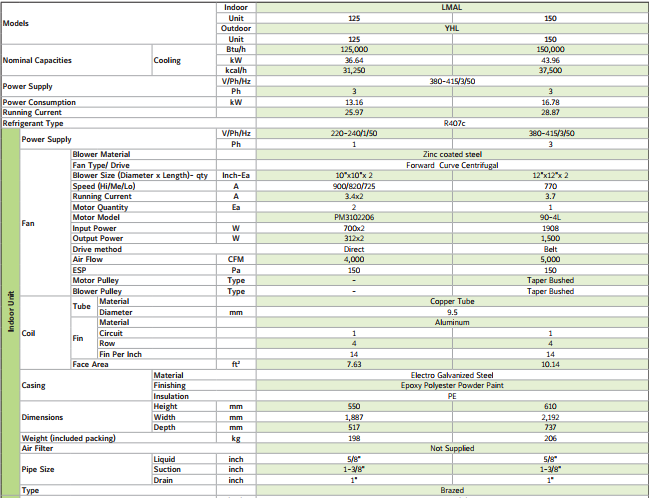

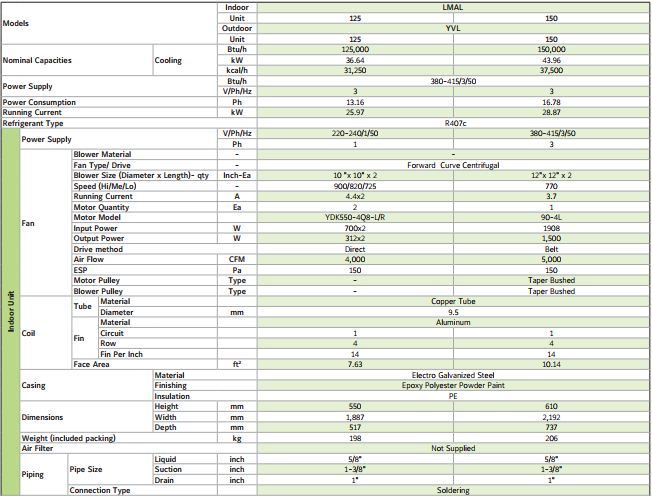

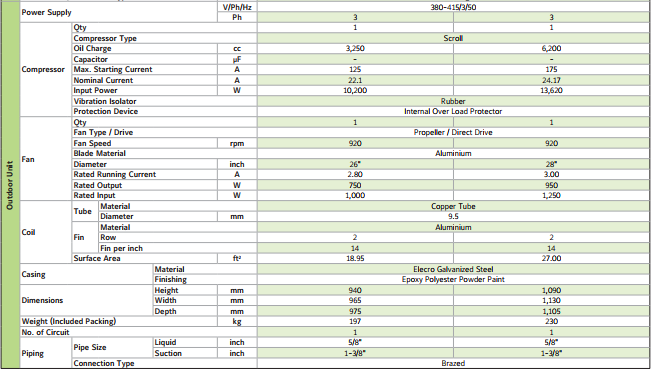

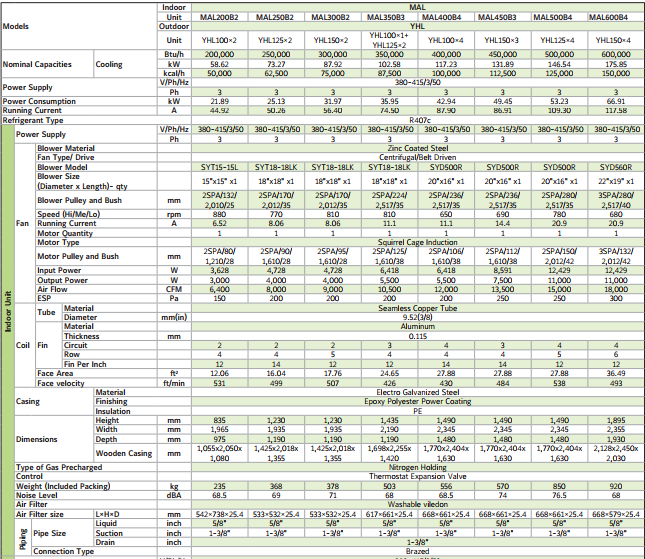

Specifications
