Extremely Quiet Operation

By employing a super-high-stream turbo fan (Three-dimensional twisted wing large bore and high efficiency), the wind flow efficiency has been improved. With the under damping slit mounted near the center of the revolving shaft, the abnormal noise which is unique to DC motors caused by the number of magnetic poles and revolution speed of the motor, is reduced.

Unified Panel Sizes

Panel sizes are unified to a 950mm square, neat and elegant, and well harmonized with decoration.

Input power reduced by applying of new developed DC fan motor

Employed several new technologies such as a ferritic magnetic surface-mounted rotor, centralized winding system and split core system, the motor efficency is improved in all aspects, smaller and lighter.

Flexible  Refrigerant  Piping

Suspending brackets are at the square corners of the body with pitch size of 760mm. The direction of the body can be changed easily according to the pipe-out opening without change the bolt position which makes installation much easier.

Drain—up Mechanism as Standard Part

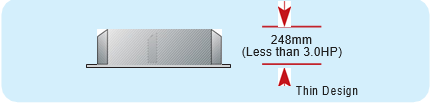

Compact and Thin

The height of the unit is just 248mm(Less than 3.0HP), so it can be in a small space inside a ceiling.

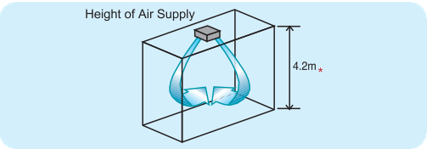

With broad range of air supply ,is suitable to be used in hiph ceiling and great space

When indoor unit model is RCI-5.0HNQ

   When indoor unit model is RCI-2.0, 3.0HNQ, the value is 3.5m

Body height easily adjustable in the corner pockets

A pocket is provided for each of the four panel corners, so that the body height can be adjusted easily without removing the panel
