Scroll Compressor

professional experience in development and manufacturing of scroll compressor ensures more advanced technology, higher quality and stronger reliability.

Top-Class Quiet Operation

Outdoor unit adopts super flow layer fan with optimized shape which has low sound pressure level. Indoor unit under top-class quiet operation offers quiet environment. Sound pressure level is only 22dB by the “Low" fan speed setting

Wide Working Range

Cooling Operation: 15°C 43°C Heating Operation: -10°C 21°C

This feature enables cooling capacity to be obtained even in winter by buildings with high internal cooling load due to lighting, people and machines, particularly in areas such as shops, lecture rooms, data processing rooms etc.

Intelligent Defrosting

Conventional split system adopts time defrosting mode (eg. Keep defrosting for 10 min. every other 40 min.), whereas Hisense sets defrosting sensor on outdoor unit, so that defrosting can be conducted according to the actual frosting degree. Besides, defrosting can stop automatically

if frost disappears. As a result, the defrosting time is shortened and heating efficiency is enhanced.

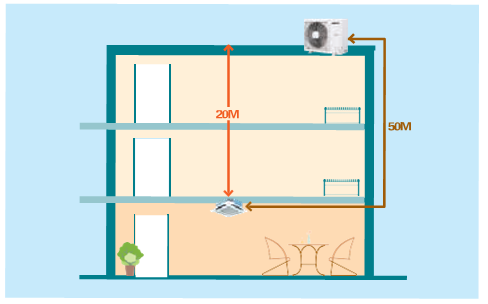

Long Piping Desig n

Due to the new control method, the actual piping length is up to 50m and pipe height can be up to 20m, which makes installation easier and more flexible.

Flexible Piping Connection

Outdoor unit ( 2.5-5HP ) has four types of piping annecâon. (front, side, bottom and back surface).Back surface annection in particular now is much easier.

Automatic Reset Function

The operating data can be recorded automatically as power failure occurs. When the power supply is restored,   the system can fulfill automatic start-up (manual operation allowed), the previous operation mode can be renewed without being reset, which brings more intelligent and considerate service to users.

Flexible Piping Connection

Outdoor unit ( 2.5-5HP ) has four types of piping annecâon. (front, side, bottom and back surface).Back surface annection in particular now is much easier.

Node Central Control——Enable AC units to realize intelligent power on/off control for room card system in business hotels, save more energy.

RS—485 Central Control, Central Controller and CS—NET- Realize long-distance central control for many multi-split units, and facilitate management and maintenance.
